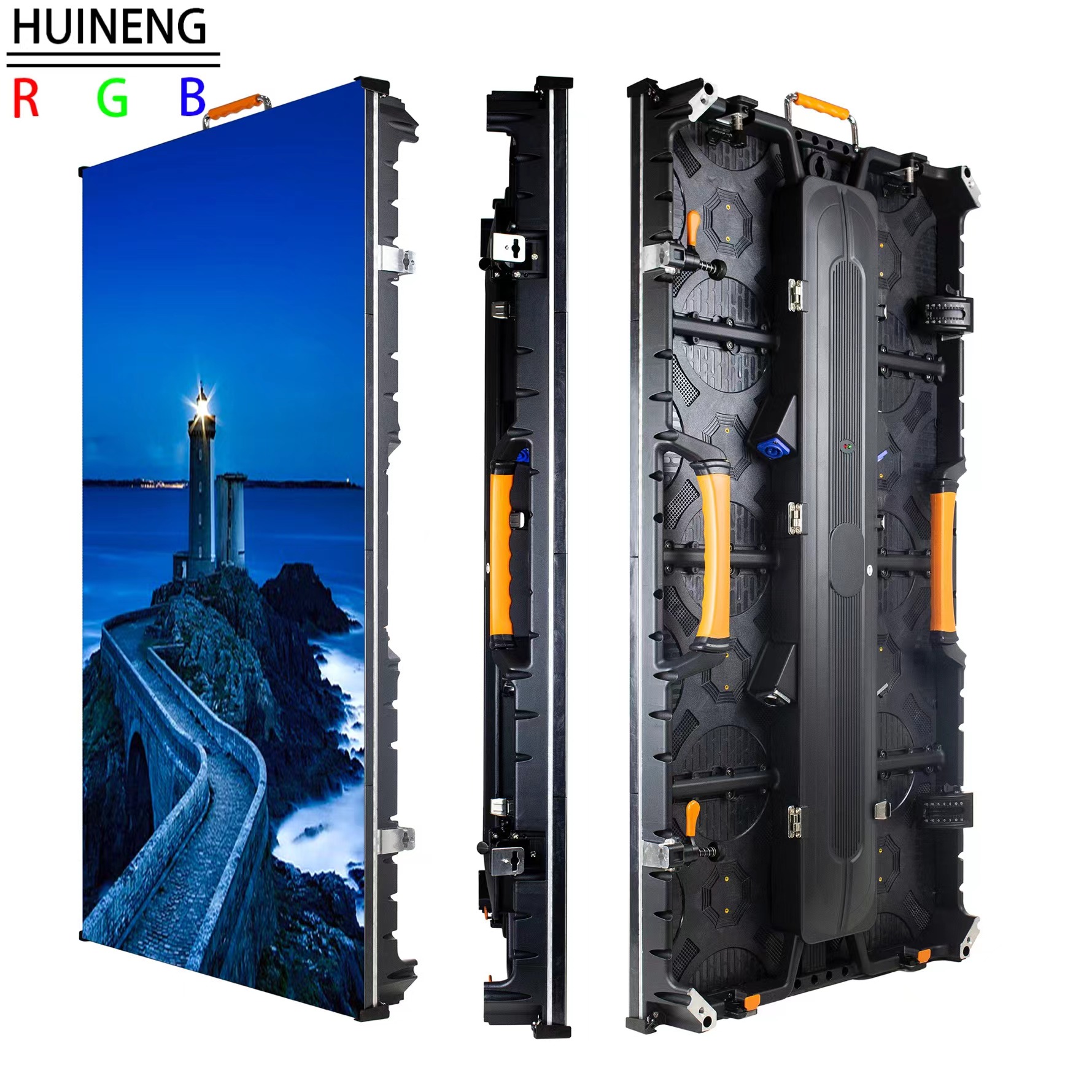

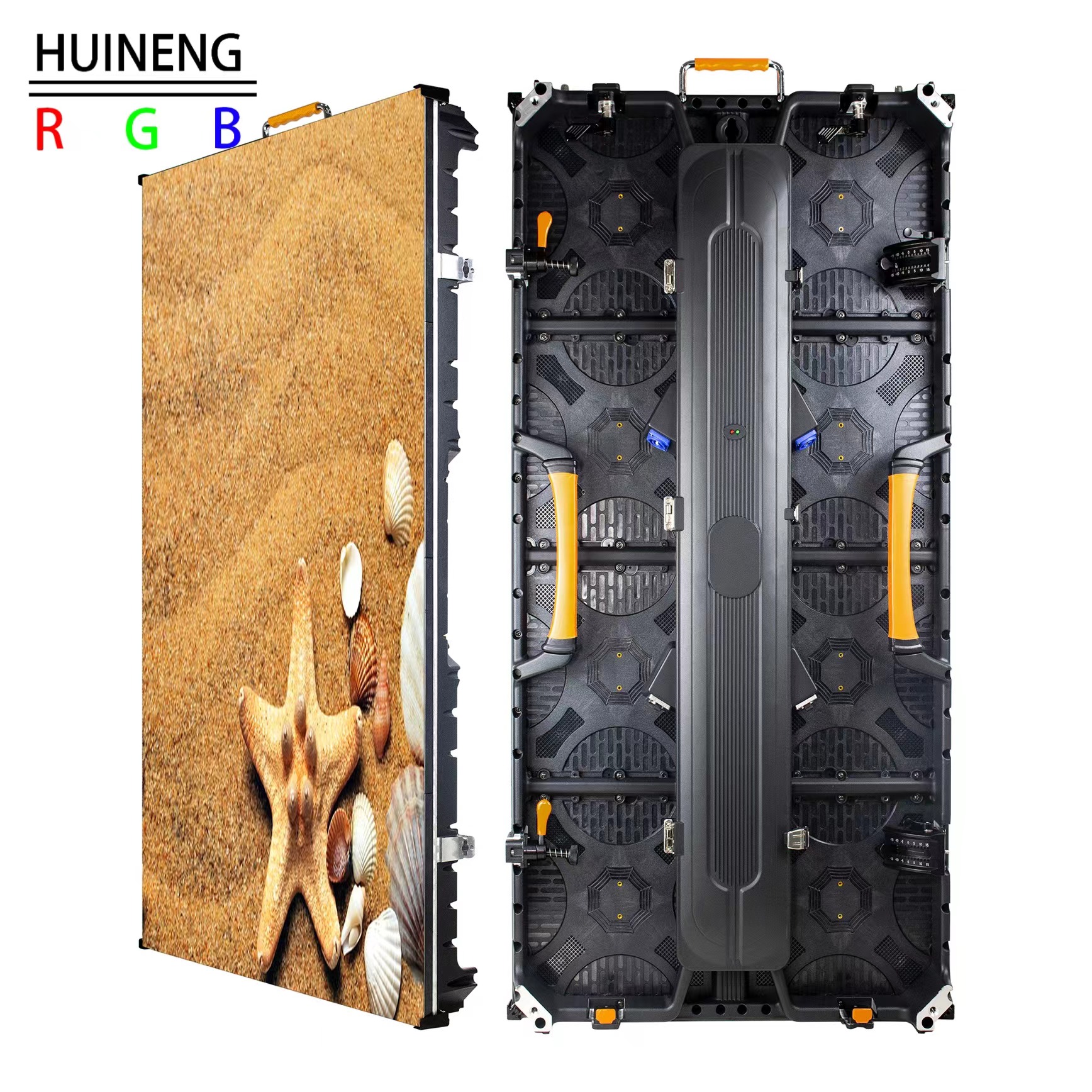

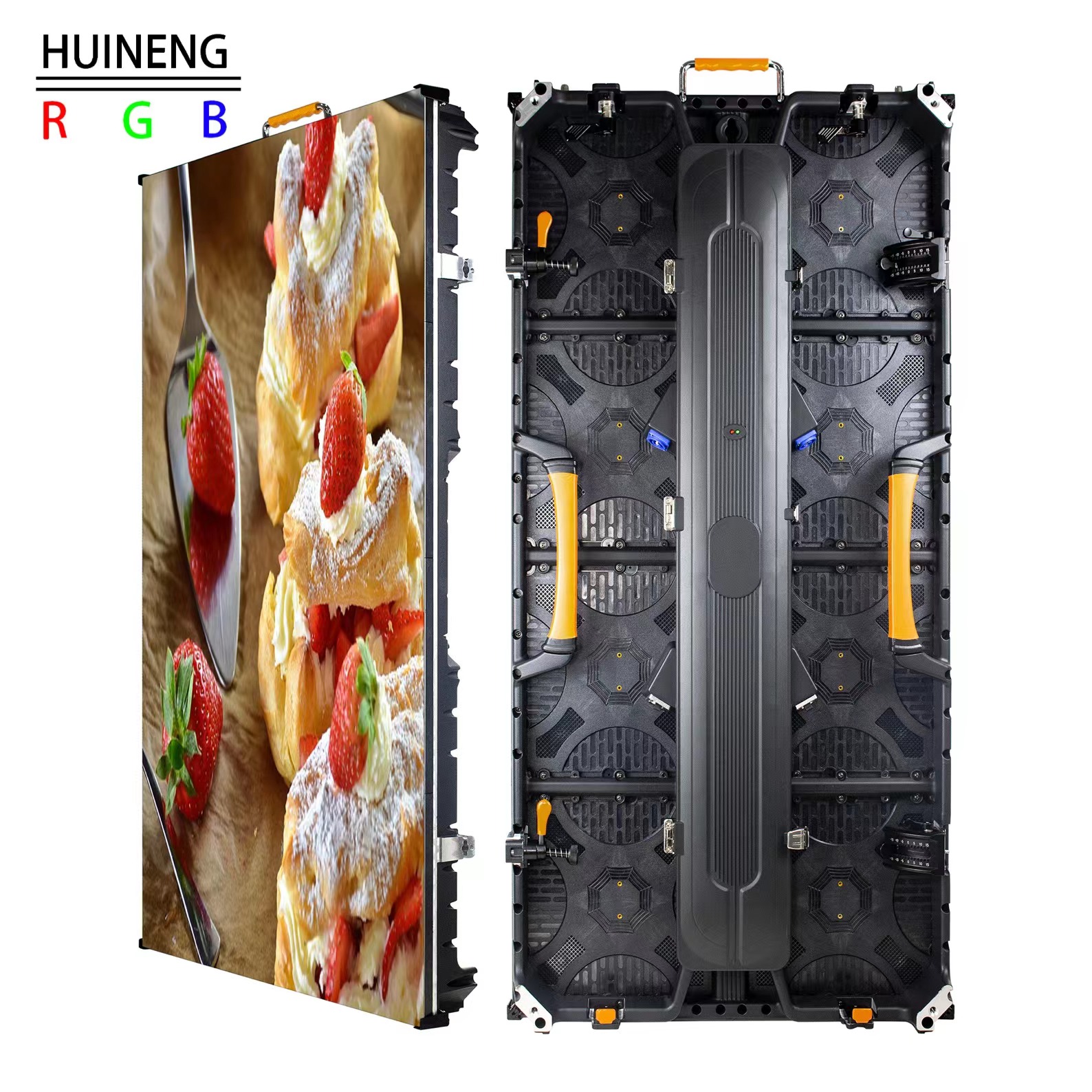

INDOOR P1.9 P2.6 P3.91 P4.81 LED DISPLAY 500*1000MM

•
  •
  •
  •



• Indoor P1.9 P2.6 P3.91 P4.81 SMD Main specification
  Indoor P4.81	Item	Parameter
  	Model Number	P1.9-32S P2.6-32S P2.976-28S P3.91-16S P4.81-13S
  	Module size	250(H)*250mm(W)
  	Pixel pitch	1.9mm 2.6mm 2.976mm 3.91mm 4.81mm
  	Pixels Density	262144 dots/m² 147456 dots/m² 112896 dots/m² 65536 dots/m² 43264 dots/m²
  	Pixel configuration	1R1G1B
  	Package mode	SMD2121
  	Drive type	Constant drive (IC2038S/2153)
  	Scan mode	1/32scan 1/32scan 1/28scan 1/16scan 1/13scan
  	Port type	HUB75
  	Brightness of white balance	≥2000cd/m²
  	Best viewing distance	4M～50M
  	Best viewing distance	160°(W) 120°(H)
  	Temperature	storage:-35℃～+85℃    working:-20℃～+50℃
  	Refresh	>1920-3840HZ
  	Gray Grade	14 bits
  	Thickness	75mm
  	Working voltage	AC220V±10%
  	Average Power consumption	450W/S
  	Cabinet size	500*500mm/500*1000mm
  	Cabinet Pixel resolution	128dots(W)*128dots(H) 96dots(W)*96dots(H) 84dots(W)*84dots(H) 64dots(W)*64dots(H) 52dots(W)*52dots(H)
  	Material	Die cast aluminum
  	Average Power consumption	400W/S
  		If >6000 cd/㎡; 700W/S
  	System support	Linsn / Nova star
