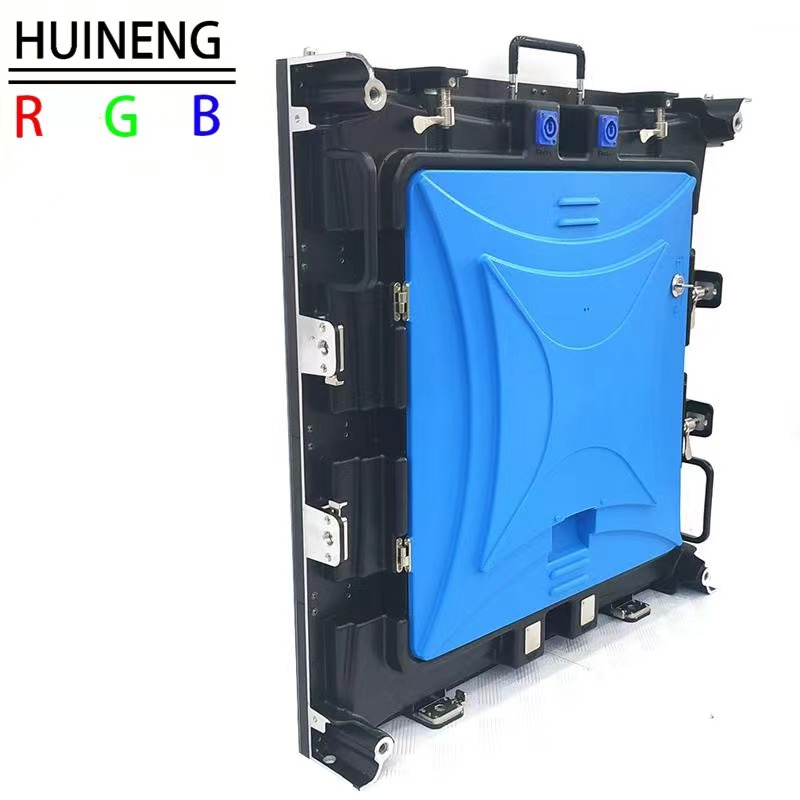

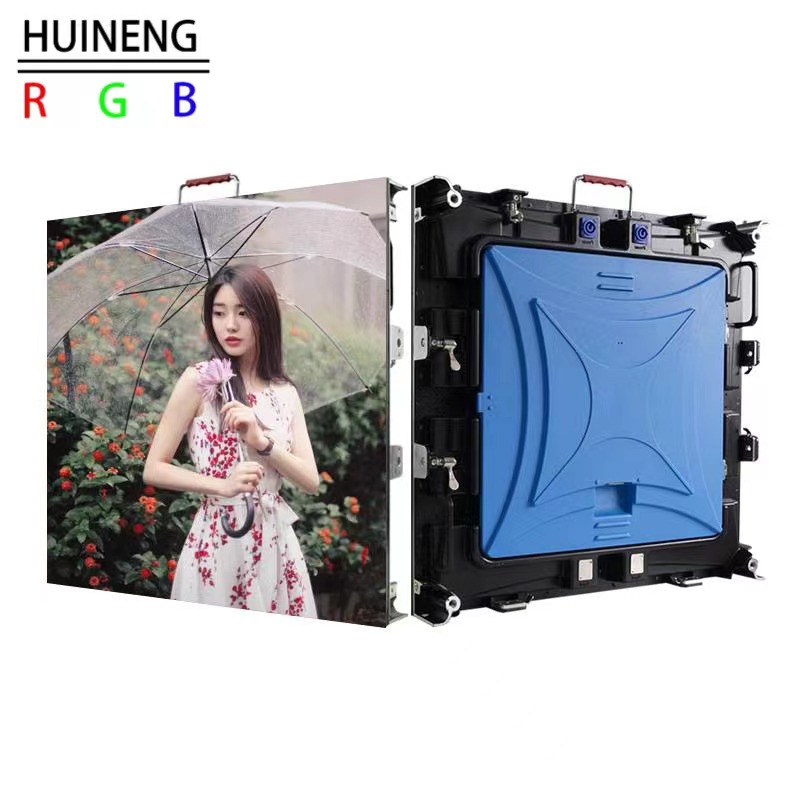

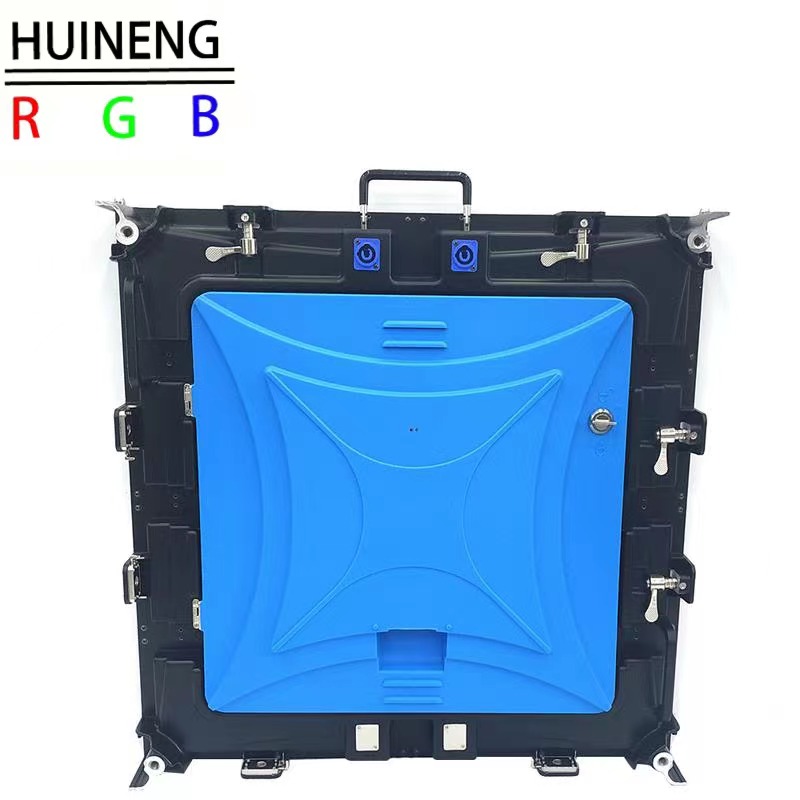

OUTDOOR P2.5 P3.076 P4 P5 P6.67 P8 P10 LED SCREEN DISPLAY WITH 640*640MM RENTAL PANELS

•
  •
  •
  •



•


  Outdoor P2.5 P3.076 P4 P5 P6.67 P8 P10 SMD Main specification
  Outdoor P2.5 P3.076 P4 P5 P6.67 P8 P10	Item	Parameter
  	Model Number	P2.5-16S P3.076-13S P4-8S/10S P5-8S P6.67-6S P8-4S/5S P10-4S
  	Module size	320mm(H)*160mm(V)
  	Pixel pitch	2.5mm 3.076mm 4mm 5mm 6.67mm 8mm 10mm
  	Pixels Density	160000dots/m² 105625dots/m² 62500dots/m² 40000dots/m² 22500dots/m² 15625dots/m² 10000dots/m²
  	Pixel configuration	1R1G1B
  	Package mode	SMD1415 SMD1415 SMD1921 SMD1921 SMD3535 SMD3535 SMD3535
  	Drive type	Constant drive (IC:2037/2153)
  	Scan mode	1/16scan 1/13scan 1/8 1/10sacn 1/8scan 1/6scan 1/4 1/5scan 1/4scan
  	Port type	HUB75
  	Brightness of white balance	≥65000cd/m²
  	Best viewing distance	2M-30M 3M-30M 4M-30M 5M-30M 6M-60M 6M-30M 8M-30M
  	Best viewing distance	160°(W) 120°(H)
  	Temperature	storage:-35℃～+85℃    working:-20℃～+50℃
  	Refresh	>1920-3840HZ
  	Gray Grade	14 bits
  	Thickness	85mm
  	Working voltage	AC220V±10%
  	Average Power consumption	450W/S
  	Cabinet size	640*640mm
  	Material	Die cast aluminum
  	Average Power consumption	400W/S
  		If >6000 cd/㎡; 800W/S
  	System support	Linsn / Nova star
