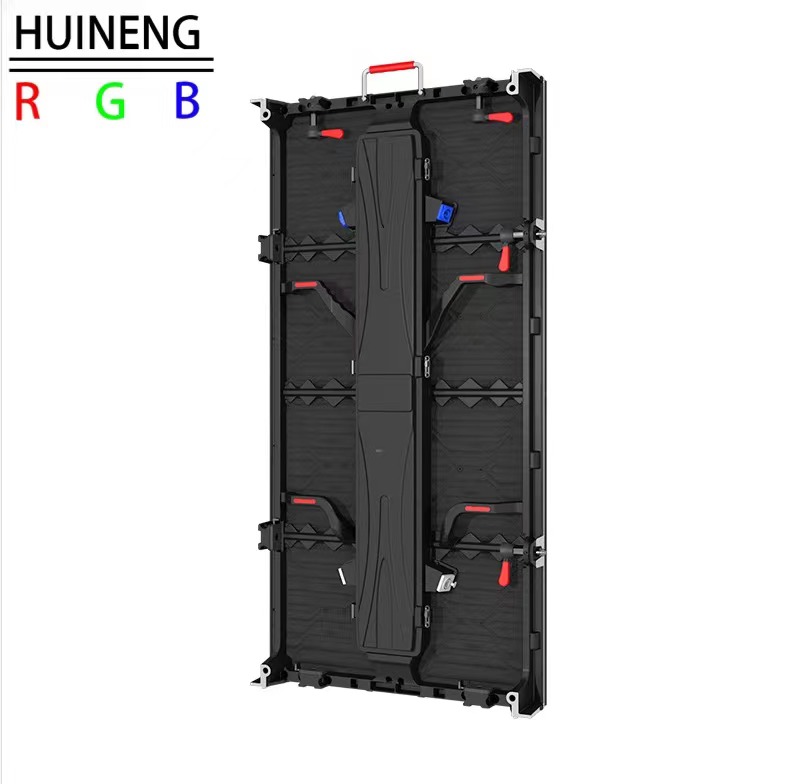

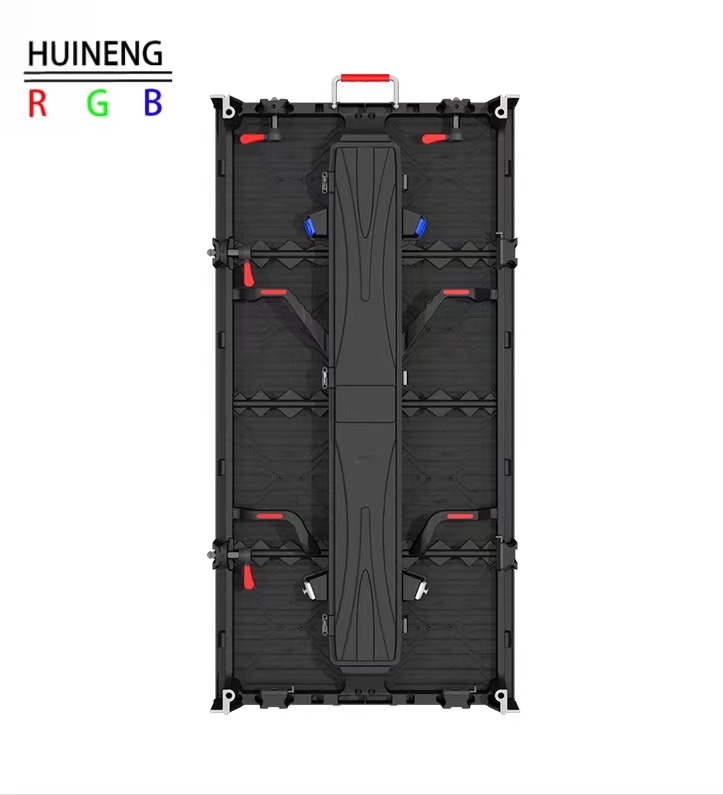

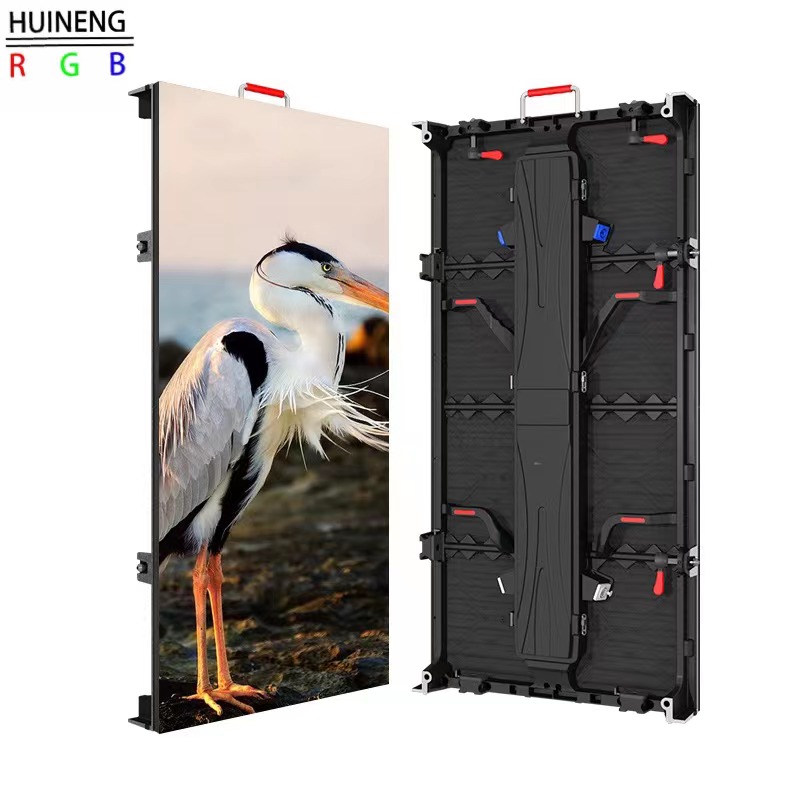

OUTDOOR P2.6 P2.976 P3.91 P4.81 500*1000MM LED SCREEN DISPLAY WITH RENTAL PANELS

•
  •
  •
  •



•


  Outdoor P2.6 P2.976 P3.91 P4.81 SMD Main specification
  Outdoor  P2.6 P2.976 P3.91 P4.81	Item	Parameter
  	Model Number	P2.6-24S P2.976-32S P3.91-16S P4.81-13S
  	Module size	250mm(H)*250mm(V)
  	Pixel pitch	2.6mm 2.976mm 3.91mm 4.81mm
  	Pixels Density	147456 dots/m² 112896 dots/m² 65536 dots/m² 43264 dots/m²
  	Pixel configuration	1R1G1B
  	Package mode	SMD1415 SMD1516 SMD1921 SMD1921
  	Drive type	Constant drive (MBI5124/2038s)
  	Scan mode	1/24scan 1/16scan 1/16scan 1/13scan
  	Port type	HUB75
  	Brightness of white balance	≥65000cd/m²
  	Best viewing distance	2M ~30M 3M～50M 4M～50M 5M ~50M
  	Best viewing distance	160°(W) 120°(H)
  	Temperature	storage:-35℃～+85℃    working:-20℃～+50℃
  	Refresh	>1920-3840HZ
  	Gray Grade	14 bits
  	Thickness	85mm
  	Working voltage	AC220V±10%
  	Average Power consumption	450W/S
  	Cabinet size	500*1000mm
  	Cabinet Pixel resolution	168dots(W)*336dots(H)
  	Material	Die cast aluminum
  	Average Power consumption	400W/S
  		If >6000 cd/㎡; 800W/S
  	System support	Linsn / Nova star
