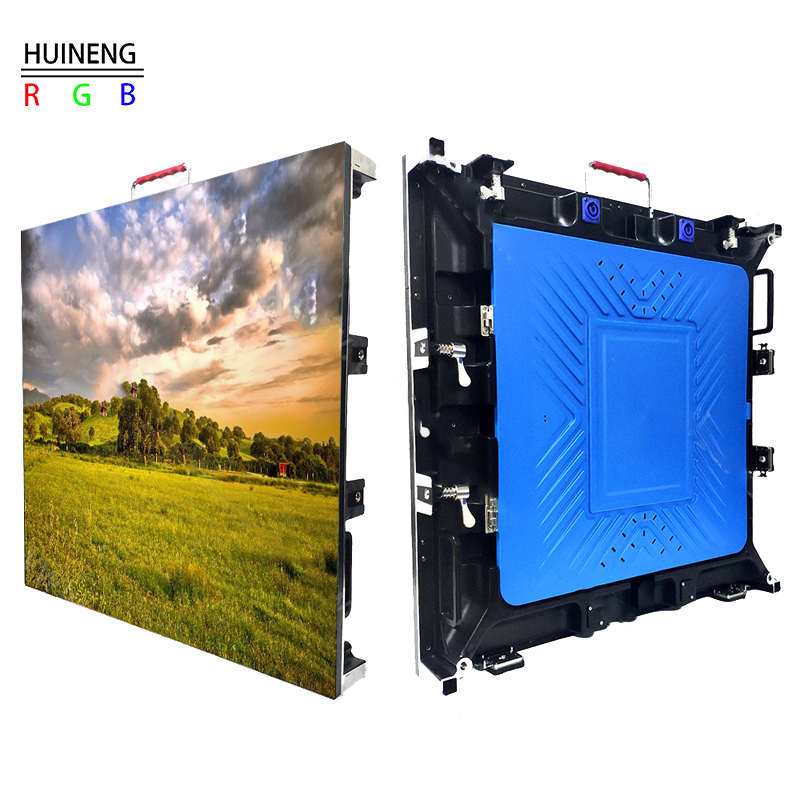

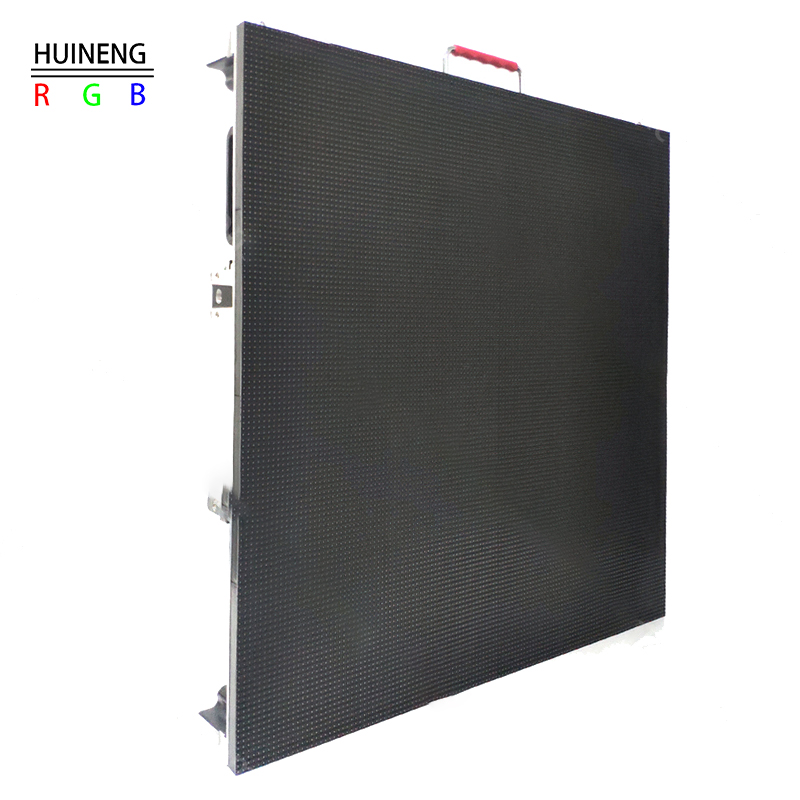

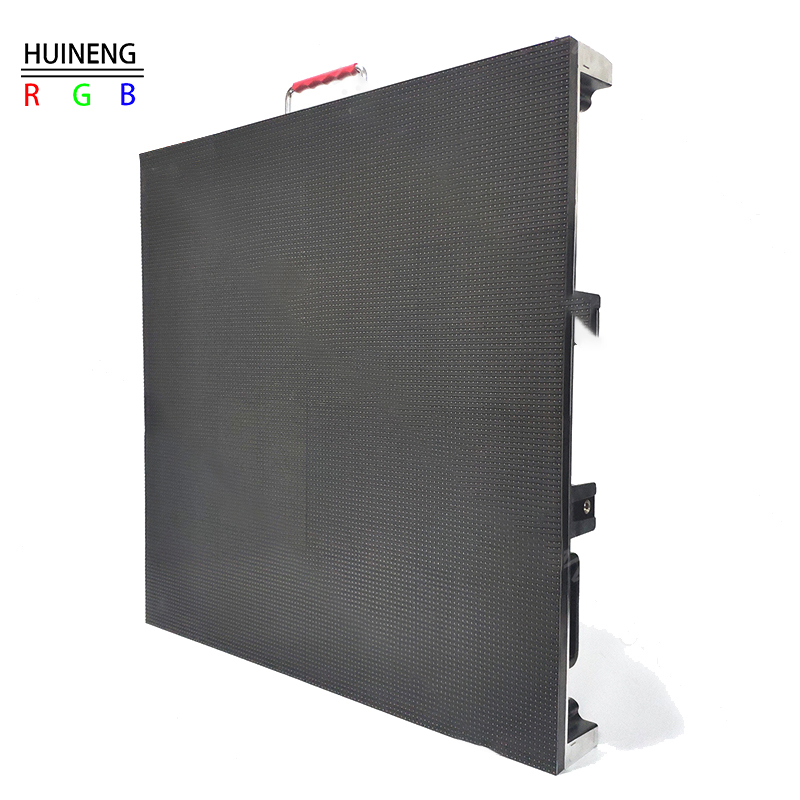

INDOOR P2 P4 LED DISPLAY 512*512MM

•
  •
  •
  •



• Indoor P2 P4 SMD Main specification
  Indoor P2 P4	Item	Parameter
  	Model Number	P2-32S/40S P4-16S/20S
  	Module size	256mm(H)*128mm(V)/320mm(H)*160mm(V) 256mm(H)*128mm(V)/320mm(H)*160mm(V)
  	Pixel pitch	2mm 4mm
  	Pixels Density	250000 dots/m² 62500 dots/m²
  	Pixel configuration	1R1G1B
  	Package mode	SMD1515
  	Drive type	Constant drive (IC2037/2153)
  	Scan mode	1/32scan/1/40scan 1/16scan/1/20scan
  	Port type	HUB75
  	Brightness of white balance	≥5500cd/m²
  	Best viewing distance	2M～50M
  	Best viewing distance	160°(W) 120°(H)
  	Temperature	storage:-35℃～+85℃    working:-20℃～+50℃
  	Refresh	>1920HZ
  	Gray Grade	14 bits
  	Thickness	85mm
  	Working voltage	AC220V±10%
  	Average Power consumption	450W/S
  	Cabinet size	512*512mm
  	Cabinet Pixel resolution	256dots(W)*256dots(H)
  	Material	Die cast aluminum
  	Average Power consumption	400W/S
  		If >6000 cd/㎡; 900W/S
  	System support	Linsn / Nova star
